4-axle 32-wheel full trailer (TT flatcar)
Full trailer with interlocked steering that can be pulled from both ends. Dedicated vehicle for transportation of long, thick steel plates.
| Vehicle type | 4-axle 32-wheel full trailer (TT flatcar) |
|---|---|
| Overall length | 24200㎜ |
| Overall width | 4000㎜ |
| Cargo deck length | 20000㎜ |
| Cargo deck height | 1750㎜ |
| Maximum load capacity | 80000㎏ |
Dedicated inclined stand
By installing on the trailer cargo deck, wide products can be transported safely.
| Vehicle type | Dedicated inclined stand |
|---|---|
| Overall length | 5000㎜ |
| Overall width | 2450㎜ |
| Cargo deck length | - |
| Cargo deck height | 700㎜ |
| Maximum load capacity | 20000㎏ |
3-axle 12-wheel leaf-spring semi trailer
Dedicated flatcar for coils, which enables 2 times the capacity of conventional trailers. Vehicle inspection conformance completed.
| Vehicle type | 3-axle 12-wheel leaf-spring semi trailer |
|---|---|
| Overall length | 13700㎜ |
| Overall width | 3200㎜ |
| Cargo deck length | 11210㎜ |
| Cargo deck height | 1550㎜ |
| Maximum load capacity | 28700㎏ |

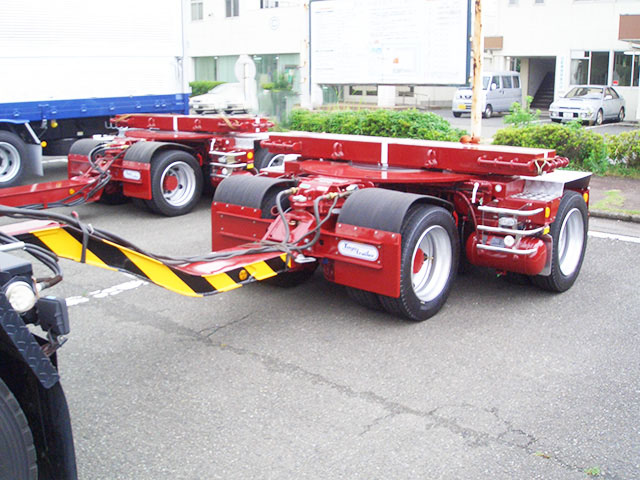

2-axle 8-wheel leaf-spring full trailer/pole trailer with steering (transportation form: 3 linked vehicles)
Leaf-spring suspension type equipped with manual steering function. Suitable mainly for transporting train cars, and the monopolized road width can be reduced by using the steering function.
| Vehicle type | 2-axle 8-wheel leaf-spring full trailer/pole trailer with steering (transportation form: 3 linked vehicles) |
|---|---|
| Overall length | 8235㎜ |
| Overall width | 2490㎜ |
| Cargo deck length | - |
| Cargo deck height | 995㎜ |
| Maximum load capacity | 16400㎏ |

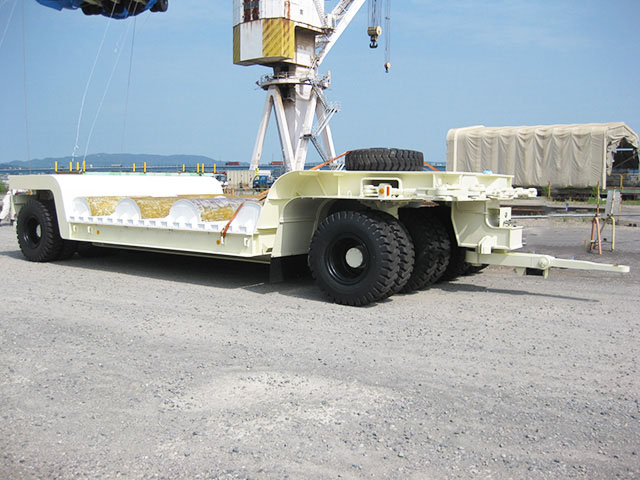

2-axle 16-wheel full trailer (coil flatbed) with interlocked steering
Dedicated vehicle for transporting hot coils. A vehicle with special specifications such as load capacity, body dimensions, heat resistance, etc.
| Vehicle type | 2-axle 16-wheel full trailer (coil flatbed) with interlocked steering |
|---|---|
| Overall length | 10240㎜ |
| Overall width | 4000㎜ |
| Cargo deck length | 4000㎜ |
| Cargo deck height | 4000㎜ |
| Maximum load capacity | 100000㎏ |

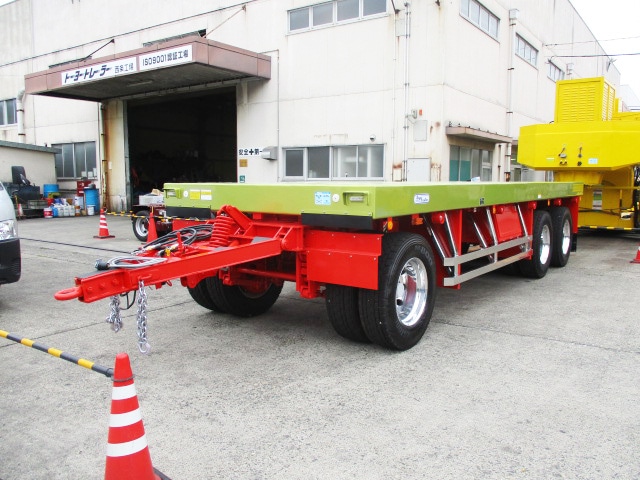

3-axle 12-wheel leaf-spring full trailer
| Vehicle type | 3-axle 12-wheel leaf-spring full trailer |
|---|---|
| Overall length | 9060㎜ |
| Overall width | 2490㎜ |
| Cargo deck length | 7270㎜ |
| Cargo deck height | 1410㎜ |
| Maximum load capacity | 14600㎏ |

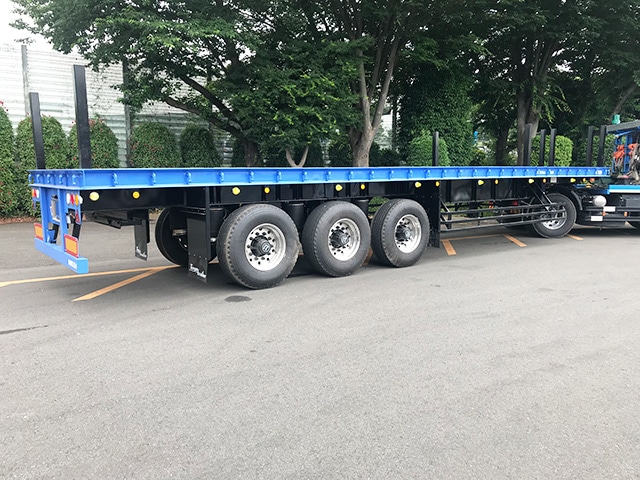

3-axle 6-wheel air-suspension semi trailer with lift axle
| Vehicle type | 3-axle 6-wheel air-suspension semi trailer with lift axle |
|---|---|
| Overall length | 12160㎜ |
| Overall width | 2490㎜ |
| Cargo deck length | 11900㎜ |
| Cargo deck height | 1500㎜ |
| Maximum load capacity | 28700㎏ |
